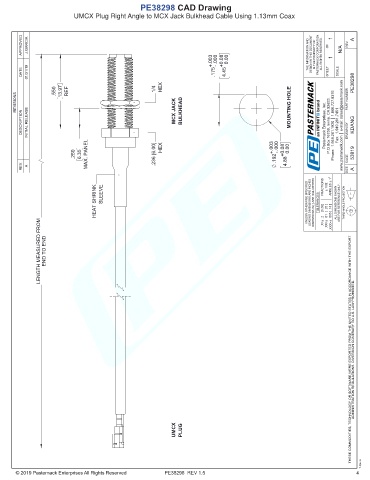

PE38298 CAD Drawing
UMCX Plug Right Angle to MCX Jack Bulkhead Cable Using 1.13mm Coax

APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 01/31/19 .175 +.003 -.000 4.45 +0.08 0.00 SHEET OF SCALE
PE38298
.550 13.97 REF 1/4 HEX
REVISIONS MCX JACK BULKHEAD MOUNTING HOLE PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY KDANG

.250 6.35 MAX. PANEL .236 [6.00] HEX .192 +.003 -.000 4.88 +0.08 0.00 CAGE 53919
REV. A SIZE A

HEAT SHRINK SLEEVE UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM END TO END

THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT

UMCX PLUG Pasternack does not make - ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.A
PE38298 REV 1.5 4
