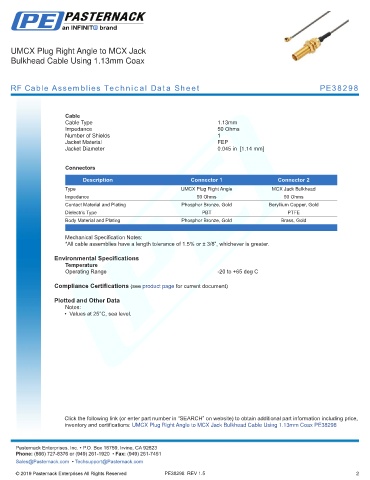

UMCX Plug Right Angle to MCX Jack
Bulkhead Cable Using 1.13mm Coax

RF Cable Assemblies Technical Data Sheet PE38298

.
Cable
Cable Type 1.13mm
Impedance 50 Ohms
Number of Shields 1
Jacket Material FEP
Jacket Diameter 0.045 in [1.14 mm]
.

Connectors
Description Connector 1 Connector 2
Type UMCX Plug Right Angle MCX Jack Bulkhead
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Phosphor Bronze, Gold Beryllium Copper, Gold
Dielectric Type PBT PTFE
Body Material and Plating Phosphor Bronze, Gold Brass, Gold
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -20 to +65 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UMCX Plug Right Angle to MCX Jack Bulkhead Cable Using 1.13mm Coax PE38298
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE38298 REV 1.5 2
