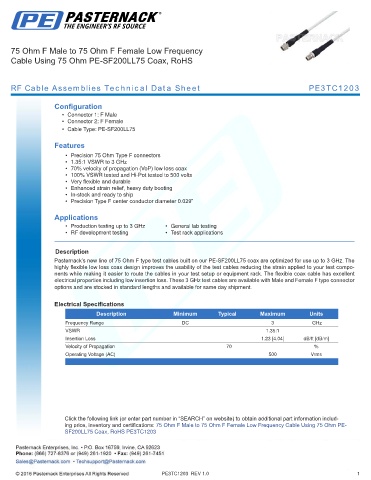

75 Ohm F Male to 75 Ohm F Female Low Frequency
Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3TC1203

Configuration
• Connector 1: F Male
• Connector 2: F Female
• Cable Type: PE-SF200LL75

Features
• Precision 75 Ohm Type F connectors
• 1.35:1 VSWR to 3 GHz
• 70% velocity of propagation (VoP) low loss coax
• 100% VSWR tested and Hi-Pot tested to 500 volts
• Very flexible and durable
• Enhanced strain relief, heavy duty booting
• In-stock and ready to ship
• Precision Type F center conductor diameter 0.029”

Applications
• Production testing up to 3 GHz • General lab testing
• RF development testing • Test rack applications
.
Description
Pasternack’s new line of 75 Ohm F type test cables built on our PE-SF200LL75 coax are optimized for use up to 3 GHz. The
highly flexible low loss coax design improves the usability of the test cables reducing the strain applied to your test compo-
nents while making it easier to route the cables in your test setup or equipment rack. The flexible coax cable has excellent
electrical properties including low insertion loss. These 3 GHz test cables are available with Male and Female F type connector
options and are stocked in standard lengths and available for same day shipment.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.35:1
Insertion Loss 1.23 [4.04] dB/ft [dB/m]
Velocity of Propagation 70 %
Operating Voltage (AC) 500 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm F Male to 75 Ohm F Female Low Frequency Cable Using 75 Ohm PE-
SF200LL75 Coax, RoHS PE3TC1203

PE3TC1203 REV 1.0 1
