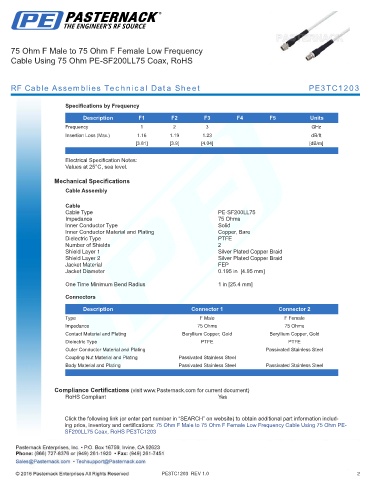

75 Ohm F Male to 75 Ohm F Female Low Frequency
Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3TC1203

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 3 GHz
Insertion Loss (Max.) 1.16 1.19 1.23 dB/ft
[3.81] [3.9] [4.04] [dB/m]
.
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-SF200LL75
Impedance 75 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Bare
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP
Jacket Diameter 0.195 in [4.95 mm]
.
One Time Minimum Bend Radius 1 in [25.4 mm]
Connectors

Description Connector 1 Connector 2
Type F Male F Female
Impedance 75 Ohms 75 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Passivated Stainless Steel
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm F Male to 75 Ohm F Female Low Frequency Cable Using 75 Ohm PE-
SF200LL75 Coax, RoHS PE3TC1203

PE3TC1203 REV 1.0 2
