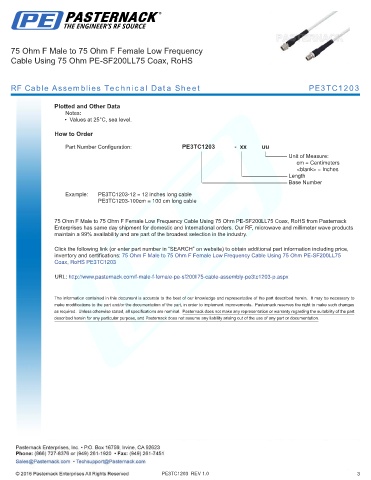

75 Ohm F Male to 75 Ohm F Female Low Frequency
Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3TC1203

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

How to Order

Part Number Configuration: PE3TC1203 - xx uu
| | | | | Unit of Measure:
cm = Centimeters
| <blank> = Inches
|
| | Length
Base Number
Example: PE3TC1203-12 = 12 inches long cable
PE3TC1203-100cm = 100 cm long cable

75 Ohm F Male to 75 Ohm F Female Low Frequency Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male to 75 Ohm F Female Low Frequency Cable Using 75 Ohm PE-SF200LL75
Coax, RoHS PE3TC1203

URL: http://www.pasternack.com/f-male-f-female-pe-sf200ll75-cable-assembly-pe3tc1203-p.aspx

PE3TC1203 REV 1.0 3
