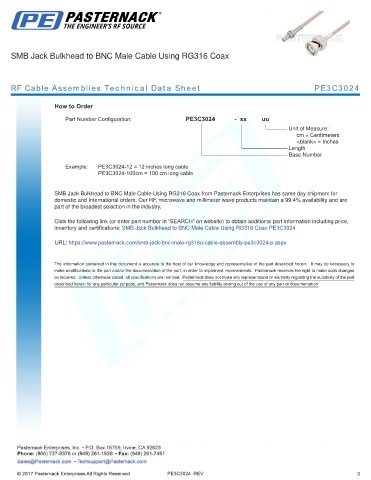

SMB Jack Bulkhead to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3024

How to Order

Part Number Configuration: PE3C3024 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number

Example: PE3C3024-12 = 12 inches long cable
PE3C3024-100cm = 100 cm long cable

SMB Jack Bulkhead to BNC Male Cable Using RG316 Coax from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Jack Bulkhead to BNC Male Cable Using RG316 Coax PE3C3024

URL: https://www.pasternack.com/smb-jack-bnc-male-rg316u-cable-assembly-pe3c3024-p.aspx

PE3C3024 REV 3
