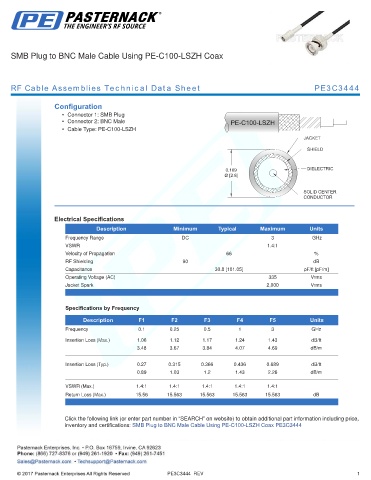

SMB Plug to BNC Male Cable Using PE-C100-LSZH Coax

RF Cable Assemblies Technical Data Sheet PE3C3444

Configuration
• Connector 1: SMB Plug
• Connector 2: BNC Male
• Cable Type: PE-C100-LSZH

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Velocity of Propagation 66 %
RF Shielding 90 dB
Capacitance 30.8 [101.05] pF/ft [pF/m]
Operating Voltage (AC) 335 Vrms
Jacket Spark 2,000 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz

Insertion Loss (Max.) 1.06 1.12 1.17 1.24 1.43 dB/ft
3.48 3.67 3.84 4.07 4.69 dB/m

Insertion Loss (Typ.) 0.27 0.315 0.366 0.436 0.689 dB/ft
0.89 1.03 1.2 1.43 2.26 dB/m

VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to BNC Male Cable Using PE-C100-LSZH Coax PE3C3444

PE3C3444 REV 1
