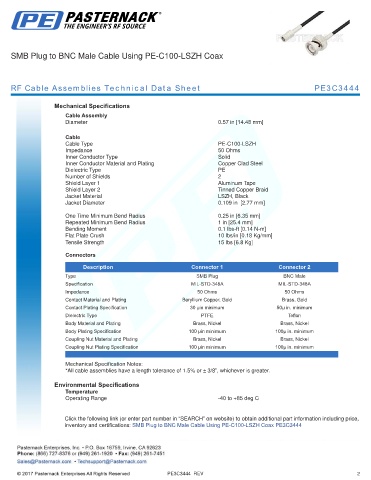

SMB Plug to BNC Male Cable Using PE-C100-LSZH Coax

RF Cable Assemblies Technical Data Sheet PE3C3444

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Cable
Cable Type PE-C100-LSZH
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel
Dielectric Type PE
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper Braid
Jacket Material LSZH, Black
Jacket Diameter 0.109 in [2.77 mm]
.
One Time Minimum Bend Radius 0.25 in [6.35 mm]
Repeated Minimum Bend Radius 1 in [25.4 mm]
Bending Moment 0.1 lbs-ft [0.14 N-m]
Flat Plate Crush 10 lbs/in [0.18 Kg/mm]
Tensile Strength 15 lbs [6.8 Kg]

Connectors
Description Connector 1 Connector 2
Type SMB Plug BNC Male
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Brass, Gold
Contact Plating Specification 30 µin minimum 50µ in. minimum
Dielectric Type PTFE Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100 µin minimum 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMB Plug to BNC Male Cable Using PE-C100-LSZH Coax PE3C3444

PE3C3444 REV 2
