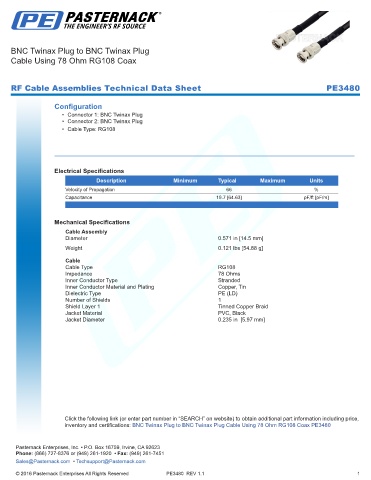

BNC Twinax Plug to BNC Twinax Plug
Cable Using 78 Ohm RG108 Coax

RF Cable Assemblies Technical Data Sheet PE3480

Configuration
• Connector 1: BNC Twinax Plug
• Connector 2: BNC Twinax Plug
• Cable Type: RG108

.
Electrical Specifications
Description Minimum Typical Maximum Units
Velocity of Propagation 66 %
Capacitance 19.7 [64.63] pF/ft [pF/m]
.

Mechanical Specifications
Cable Assembly
Diameter 0.571 in [14.5 mm]
.
Weight 0.121 lbs [54.88 g]
Cable
Cable Type RG108
Impedance 78 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Tin
Dielectric Type PE (LD)
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material PVC, Black
Jacket Diameter 0.235 in [5.97 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Plug to BNC Twinax Plug Cable Using 78 Ohm RG108 Coax PE3480

PE3480 REV 1.1 1
