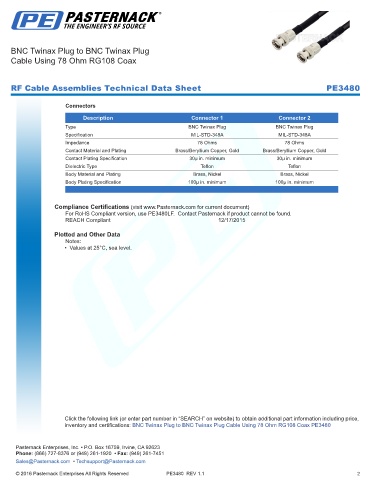

BNC Twinax Plug to BNC Twinax Plug
Cable Using 78 Ohm RG108 Coax

RF Cable Assemblies Technical Data Sheet PE3480

Connectors

Description Connector 1 Connector 2
Type BNC Twinax Plug BNC Twinax Plug
Specification MIL-STD-348A MIL-STD-348A
Impedance 78 Ohms 78 Ohms
Contact Material and Plating Brass/Beryllium Copper, Gold Brass/Beryllium Copper, Gold
Contact Plating Specification 30µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
.

Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE3480LF. Contact Pasternack if product cannot be found.
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Twinax Plug to BNC Twinax Plug Cable Using 78 Ohm RG108 Coax PE3480

PE3480 REV 1.1 2
