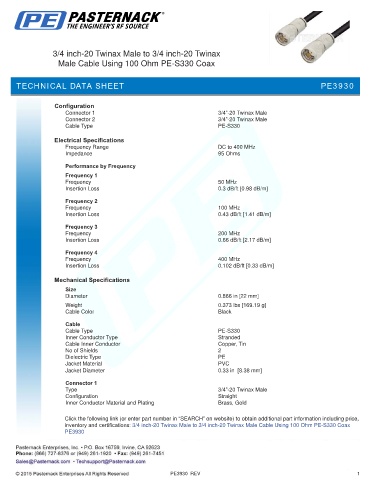

3/4 inch-20 Twinax Male to 3/4 inch-20 Twinax
Male Cable Using 100 Ohm PE-S330 Coax

TECHNICAL D PE3930
TECHNICAL DATA SHEETATA SHEET

Configuration
Connector 1 3/4”-20 Twinax Male
Connector 2 3/4”-20 Twinax Male
Cable Type PE-S330

Electrical Specifications
Frequency Range DC to 400 MHz
Impedance 95 Ohms

Performance by Frequency
Frequency 1
Frequency 50 MHz
Insertion Loss 0.3 dB/ft [0.98 dB/m]

Frequency 2
Frequency 100 MHz
Insertion Loss 0.43 dB/ft [1.41 dB/m]

Frequency 3
Frequency 200 MHz
Insertion Loss 0.66 dB/ft [2.17 dB/m]
Frequency 4
Frequency 400 MHz
Insertion Loss 0.102 dB/ft [0.33 dB/m]

Mechanical Specifications
Size
Diameter 0.866 in [22 mm]
.
Weight 0.373 lbs [169.19 g]
Cable Color Black
Cable
Cable Type PE-S330
Inner Conductor Type Stranded
Cable Inner Conductor Copper, Tin
No of Shields 2
Dielectric Type PE
Jacket Material PVC
Jacket Diameter 0.33 in [8.38 mm]
Connector 1
Type 3/4”-20 Twinax Male
Configuration Straight
Inner Conductor Material and Plating Brass, Gold

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3/4 inch-20 Twinax Male to 3/4 inch-20 Twinax Male Cable Using 100 Ohm PE-S330 Coax
PE3930

PE3930 REV 1
