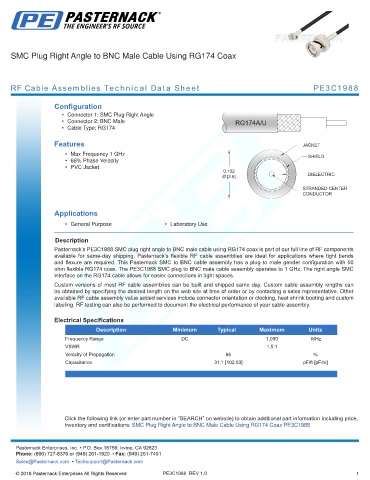

SMC Plug Right Angle to BNC Male Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE3C1988

Configuration
• Connector 1: SMC Plug Right Angle
• Connector 2: BNC Male
• Cable Type: RG174

Features
• Max Frequency 1 GHz
• 66% Phase Velocity
• PVC Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C1988 SMC plug right angle to BNC male cable using RG174 coax is part of our full line of RF components
available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends
and flexure are required. This Pasternack SMC to BNC cable assembly has a plug to male gender configuration with 50
ohm flexible RG174 coax. The PE3C1988 SMC plug to BNC male cable assembly operates to 1 GHz. The right angle SMC
interface on the RG174 cable allows for easier connections in tight spaces.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can
be obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other
available RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom
labeling. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.5:1
Velocity of Propagation 66 %
Capacitance 31.1 [102.03] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Plug Right Angle to BNC Male Cable Using RG174 Coax PE3C1988
-
