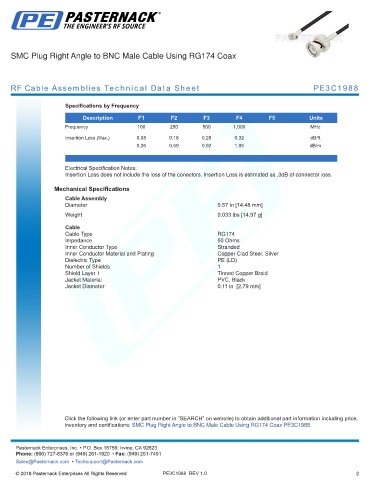

SMC Plug Right Angle to BNC Male Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE3C1988

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 100 250 500 1,000 MHz
Insertion Loss (Max.) 0.08 0.18 0.28 0.32 dB/ft
0.26 0.59 0.92 1.05 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the conectors. Insertion Loss is estimated as .3dB of connector loss.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Weight 0.033 lbs [14.97 g]
Cable
Cable Type RG174
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PE (LD)
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material PVC, Black
Jacket Diameter 0.11 in [2.79 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMC Plug Right Angle to BNC Male Cable Using RG174 Coax PE3C1988
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C1988 REV 1.0 2
