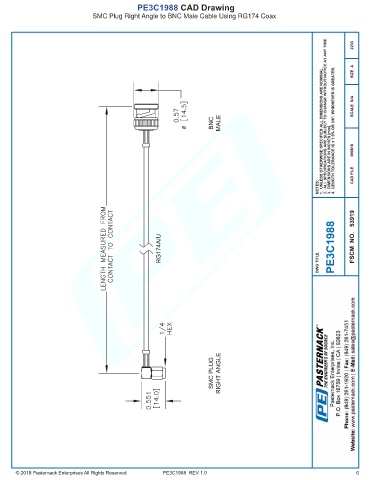

PE3C1988 CAD Drawing
SMC Plug Right Angle to BNC Male Cable Using RG174 Coax
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3C1988 REV 1.0 6
