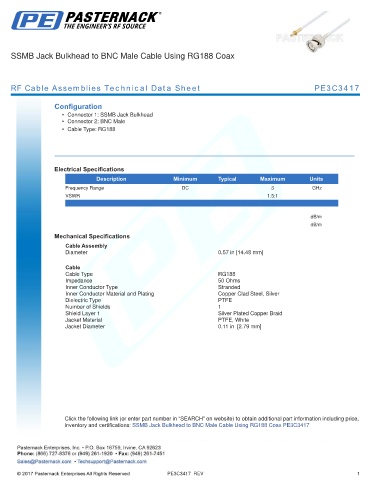

SSMB Jack Bulkhead to BNC Male Cable Using RG188 Coax

RF Cable Assemblies Technical Data Sheet PE3C3417

Configuration
• Connector 1: SSMB Jack Bulkhead
• Connector 2: BNC Male
• Cable Type: RG188

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
.

dB/m
dB/m
Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Cable
Cable Type RG188
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material PTFE, White
Jacket Diameter 0.11 in [2.79 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMB Jack Bulkhead to BNC Male Cable Using RG188 Coax PE3C3417

PE3C3417 REV 1
