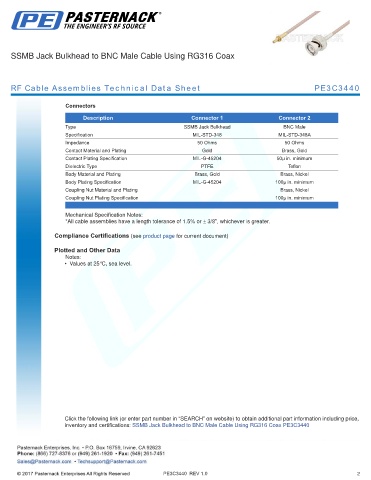

SSMB Jack Bulkhead to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3440

Connectors

Description Connector 1 Connector 2
Type SSMB Jack Bulkhead BNC Male
Specification MIL-STD-348 MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Gold Brass, Gold
Contact Plating Specification MIL-G-45204 50µ in. minimum
Dielectric Type PTFE Teflon
Body Material and Plating Brass, Gold Brass, Nickel
Body Plating Specification MIL-G-45204 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMB Jack Bulkhead to BNC Male Cable Using RG316 Coax PE3C3440

PE3C3440 REV 1.0 2
