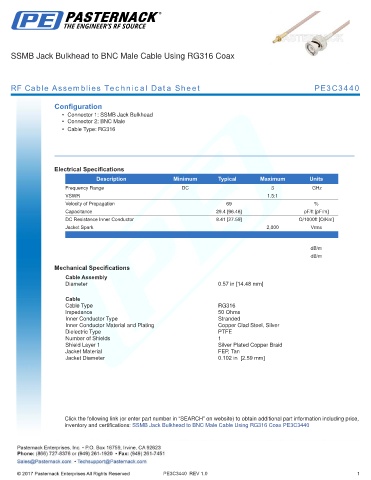

SSMB Jack Bulkhead to BNC Male Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3C3440

Configuration
• Connector 1: SSMB Jack Bulkhead
• Connector 2: BNC Male
• Cable Type: RG316

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Velocity of Propagation 69 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
DC Resistance Inner Conductor 8.41 [27.59] Ω/1000ft [Ω/Km]
Jacket Spark 2,000 Vrms
.
dB/m
dB/m
Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.102 in [2.59 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMB Jack Bulkhead to BNC Male Cable Using RG316 Coax PE3C3440
