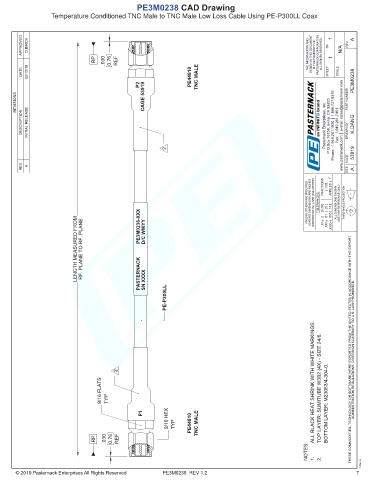

PE3M0238 CAD Drawing
Temperature Conditioned TNC Male to TNC Male Low Loss Cable Using PE-P300LL Coax

APPROVED D.BIRCH 1 N/A REV A

RP .030 0.76 REF THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. SHEET OF 1
DATE 02/12/19 PE44810 TNC MALE SCALE

P2 PE3M0238
REVISIONS CAGE 53919 PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

2 CAGE 53919

REV. A SIZE A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM RF. PLANE TO RF. PLANE PASTERNACK PE3M0238-XXX SN XXXX D/C WWYY

PE-P300LL

2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
9/16 FLATS TYP ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6.

9/16 HEX TYP PE44810 TNC MALE
P1 BOTTOM LAYER: M23053/4-304-0.

Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
RP .030 0.76 REF
NOTES:
1.
2.
T-Rev.A
PE3M0238 REV 1.2 7
