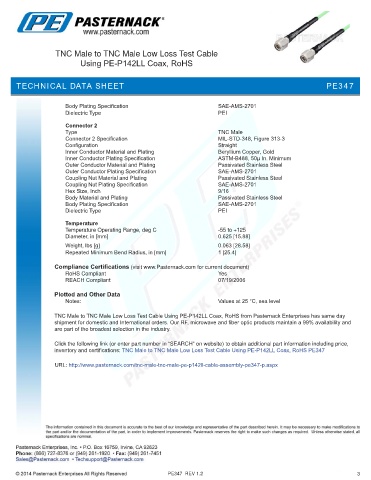

TNC Male to TNC Male Low Loss Test Cable
Using PE-P142LL Coax, RoHS

TECHNICAL D PE347
TECHNICAL DATA SHEETATA SHEET

Body Plating Specification SAE-AMS-2701
Dielectric Type PEI

Connector 2
Type TNC Male
Connector 2 Specification MIL-STD-348, Figure 313-3
Configuration Straight
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification ASTM-B488, 50µ In. Minimum
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2701
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification SAE-AMS-2701
Hex Size, Inch 9/16
Body Material and Plating Passivated Stainless Steel
Body Plating Specification SAE-AMS-2701
Dielectric Type PEI
Temperature
Temperature Operating Range, deg C -55 to +125
Diameter, in [mm] 0.625 [15.88]
.
Weight, lbs [g] 0.063 [28.58]
Repeated Minimum Bend Radius, in [mm] 1 [25.4]

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 07/19/2006

Plotted and Other Data
Notes: Values at 25 °C, sea level

TNC Male to TNC Male Low Loss Test Cable Using PE-P142LL Coax, RoHS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Low Loss Test Cable Using PE-P142LL Coax, RoHS PE347
URL: http://www.pasternack.com/tnc-male-tnc-male-pe-p142ll-cable-assembly-pe347-p.aspx

PE347 REV 1.2 3
