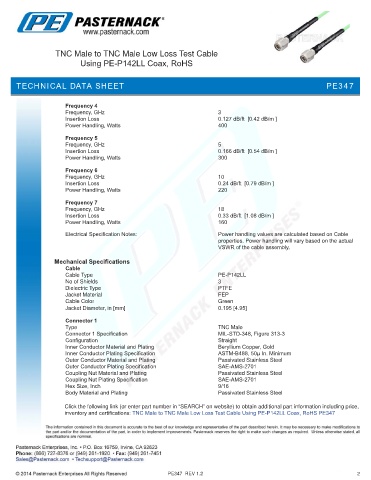

TNC Male to TNC Male Low Loss Test Cable
Using PE-P142LL Coax, RoHS

TECHNICAL D PE347
TECHNICAL DATA SHEETATA SHEET

Frequency 4
Frequency, GHz 3
Insertion Loss 0.127 dB/ft [0.42 dB/m ]
Power Handling, Watts 400

Frequency 5
Frequency, GHz 5
Insertion Loss 0.166 dB/ft [0.54 dB/m ]
Power Handling, Watts 300
Frequency 6
Frequency, GHz 10
Insertion Loss 0.24 dB/ft [0.79 dB/m ]
Power Handling, Watts 220

Frequency 7
Frequency, GHz 18
Insertion Loss 0.33 dB/ft [1.08 dB/m ]
Power Handling, Watts 160

Electrical Specification Notes: Power handling values are calculated based on Cable
properties. Power handling will vary based on the actual
VSWR of the cable assembly.

Mechanical Specifications
Cable
Cable Type PE-P142LL
No of Shields 3
Dielectric Type PTFE
Jacket Material FEP
Cable Color Green
Jacket Diameter, in [mm] 0.195 [4.95]
Connector 1
Type TNC Male
Connector 1 Specification MIL-STD-348, Figure 313-3
Configuration Straight
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification ASTM-B488, 50µ In. Minimum
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification SAE-AMS-2701
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification SAE-AMS-2701
Hex Size, Inch 9/16
Body Material and Plating Passivated Stainless Steel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Low Loss Test Cable Using PE-P142LL Coax, RoHS PE347

PE347 REV 1.2 2
