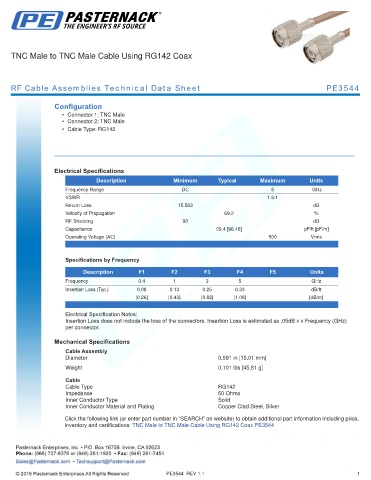

TNC Male to TNC Male Cable Using RG142 Coax

RF Cable Assemblies Technical Data Sheet PE3544

Configuration
• Connector 1: TNC Male
• Connector 2: TNC Male
• Cable Type: RG142

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 5 GHz
VSWR 1.5:1
Return Loss 15.563 dB
Velocity of Propagation 69.2 %
RF Shielding 90 dB
Capacitance 29.4 [96.46] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.4 1 3 5 GHz
Insertion Loss (Typ.) 0.08 0.13 0.25 0.33 dB/ft
[0.26] [0.43] [0.82] [1.08] [dB/m]
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as .05dB x v Frequency (GHz)
per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.591 in [15.01 mm]
.
Weight 0.101 lbs [45.81 g]

Cable
Cable Type RG142
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Cable Using RG142 Coax PE3544

PE3544 REV 1.1 1
