TNC Male to TNC Male Cable Using PE-
141FLEX Coax , LF Solder

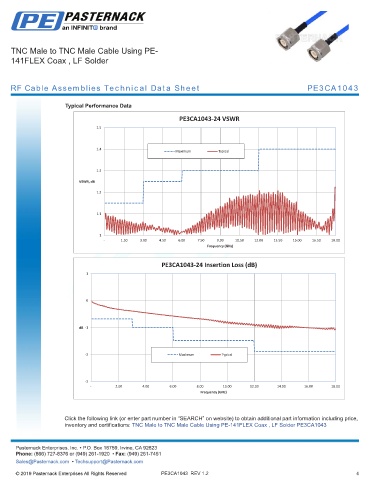

RF Cable Assemblies Technical Data Sheet PE3CA1043

Typical Performance Data

PE3CA1043-24 VSWR
1.5

1.4 Maximum Typical

1.3
VSWR, dB
1.2

1.1

1
- 1.50 3.00 4.50 6.00 7.50 9.00 10.50 12.00 13.50 15.00 16.50 18.00
Frequency (GHz)

PE3CA1043-24 Insertion Loss (dB)
1

0

dB -1

-2 Maximum Typical

-3
- 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00
Frequency (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Cable Using PE-141FLEX Coax , LF Solder PE3CA1043
-
