TNC Male to TNC Male Cable Using PE-
141FLEX Coax , LF Solder

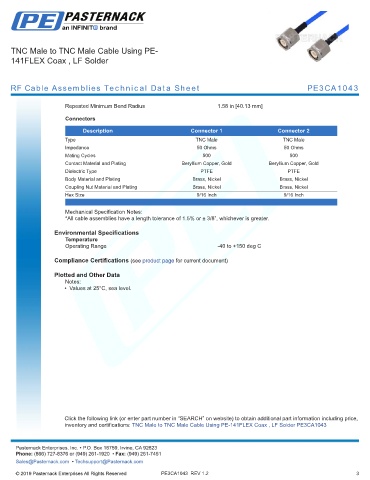

RF Cable Assemblies Technical Data Sheet PE3CA1043

Repeated Minimum Bend Radius 1.58 in [40.13 mm]

Connectors
Description Connector 1 Connector 2
Type TNC Male TNC Male
Impedance 50 Ohms 50 Ohms
Mating Cycles 500 500
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Hex Size 9/16 Inch 9/16 Inch
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +150 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Cable Using PE-141FLEX Coax , LF Solder PE3CA1043
-
