TNC Male to TNC Male Cable Using PE-
141FLEX Coax , LF Solder

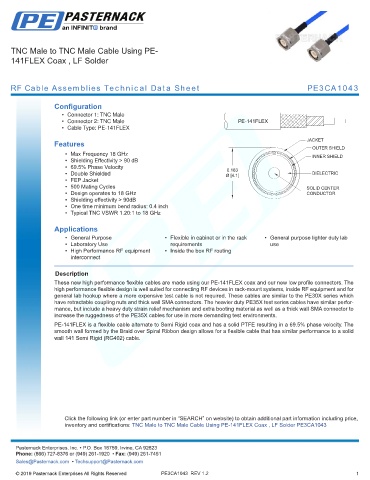

RF Cable Assemblies Technical Data Sheet PE3CA1043

Configuration
• Connector 1: TNC Male
• Connector 2: TNC Male
• Cable Type: PE-141FLEX

Features
• Max Frequency 18 GHz
• Shielding Effectivity > 90 dB
• 69.5% Phase Velocity
• Double Shielded
• FEP Jacket
• 500 Mating Cycles
• Design operates to 18 GHz
• Shielding effectivity > 90dB
• One time minimum bend radius: 0.4 inch
• Typical TNC VSWR 1.20:1 to 18 GHz

Applications
• General Purpose • Flexible in cabinet or in the rack • General purpose lighter duty lab
• Laboratory Use requirements use
• High Performance RF equipment • Inside the box RF routing
interconnect
.
Description
These new high performance flexible cables are made using our PE-141FLEX coax and our new low profile connectors. The
high performance flexible design is well suited for connecting RF devices in rack-mount systems, inside RF equipment and for
general lab hookup where a more expensive test cable is not required. These cables are similar to the PE30X series which
have retractable coupling nuts and thick wall SMA connectors. The heavier duty PE35X test series cables have similar perfor-
mance, but include a heavy duty strain relief mechanism and extra booting material as well as a thick wall SMA connector to
increase the ruggedness of the PE35X cables for use in more demanding test environments.
PE-141FLEX is a flexible cable alternate to Semi Rigid coax and has a solid PTFE resulting in a 69.5% phase velocity. The
smooth wall formed by the Braid over Spiral Ribbon design allows for a flexible cable that has similar performance to a solid
wall 141 Semi Rigid (RG402) cable.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Cable Using PE-141FLEX Coax , LF Solder PE3CA1043
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3CA1043 REV 1.2 1
