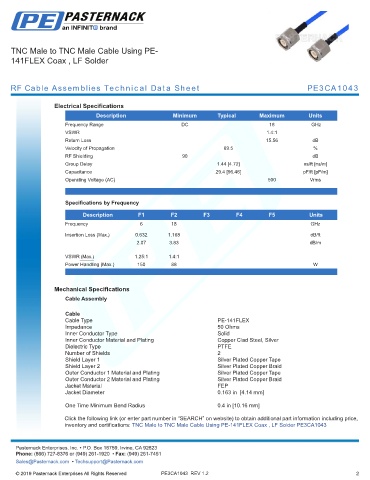

TNC Male to TNC Male Cable Using PE-
141FLEX Coax , LF Solder

RF Cable Assemblies Technical Data Sheet PE3CA1043

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 69.5 %
RF Shielding 90 dB
Group Delay 1.44 [4.72] ns/ft [ns/m]
Capacitance 29.4 [96.46] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms

.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 6 18 GHz
Insertion Loss (Max.) 0.632 1.168 dB/ft
2.07 3.83 dB/m

VSWR (Max.) 1.25:1 1.4:1
Power Handling (Max.) 150 88 W
.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-141FLEX
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Silver Plated Copper Braid
Outer Conductor 1 Material and Plating Silver Plated Copper Tape
Outer Conductor 2 Material and Plating Silver Plated Copper Braid
Jacket Material FEP
Jacket Diameter 0.163 in [4.14 mm]
.
One Time Minimum Bend Radius 0.4 in [10.16 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male to TNC Male Cable Using PE-141FLEX Coax , LF Solder PE3CA1043
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3CA1043 REV 1.2 2
