Page 967 - SMB to 95 Ohm 3/4"-20 Twinax RF Cable Assembly Datasheets
P. 967

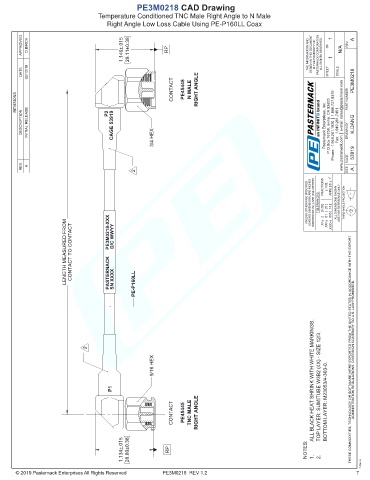

PE3M0218 CAD Drawing
Temperature Conditioned TNC Male Right Angle to N Male
Right Angle Low Loss Cable Using PE-P160LL Coax
1
APPROVED D.BIRCH 1.146±.015 29.11±0.38 RP THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 N/A REV A
DATE 02/12/19 SHEET OF SCALE PE3M0218
REVISIONS CONTACT PE45448 N MALE RIGHT ANGLE PART NUMBER
DESCRIPTION INITIAL RELEASE P2 CAGE 53919 3/4 HEX Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG
REV. A CAGE 53919
2 SIZE A
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
LENGTH MEASURED FROM CONTACT TO CONTACT PASTERNACK PE3M0218-XXX SN XXXX D/C WWYY PE-P160LL
2 THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
9/16 HEX
P1 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3.
CONTACT PE45445 TNC MALE RIGHT ANGLE BOTTOM LAYER: M23053/4-303-0.
