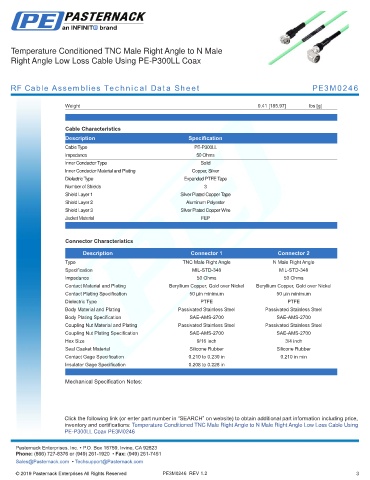

Temperature Conditioned TNC Male Right Angle to N Male
Right Angle Low Loss Cable Using PE-P300LL Coax

RF Cable Assemblies Technical Data Sheet PE3M0246

Weight 0.41 [185.97] lbs [g]

.
Cable Characteristics
Description Specification
Cable Type PE-P300LL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type Expanded PTFE Tape
Number of Shields 3
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Aluminum Polyester
Shield Layer 3 Silver Plated Copper Wire
Jacket Material FEP
.

Connector Characteristics
Description Connector 1 Connector 2
Type TNC Male Right Angle N Male Right Angle
Specification MIL-STD-348 MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold over Nickel Beryllium Copper, Gold over Nickel
Contact Plating Specification 50 µin minimum 50 µin minimum
Dielectric Type PTFE PTFE
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Body Plating Specification SAE-AMS-2700 SAE-AMS-2700
Coupling Nut Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Plating Specification SAE-AMS-2700 SAE-AMS-2700
Hex Size 9/16 inch 3/4 inch
Seal Gasket Material Silicone Rubber Silicone Rubber
Contact Gage Specification 0.210 to 0.230 in 0.210 in min
Insulator Gage Specification 0.208 to 0.228 in
.
Mechanical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned TNC Male Right Angle to N Male Right Angle Low Loss Cable Using
PE-P300LL Coax PE3M0246 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0246 REV 1.2 3
