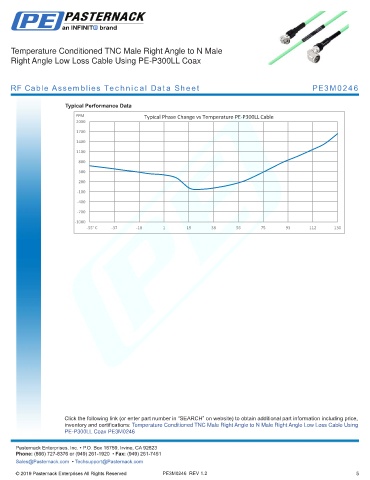

Temperature Conditioned TNC Male Right Angle to N Male
Right Angle Low Loss Cable Using PE-P300LL Coax
RF Cable Assemblies Technical Data Sheet PE3M0246
Typical Performance Data
PPM Typical Phase Change vs Temperature PE-P300LL Cable
2000
1700
1400
1100
800
500
200
-100
-400
-700
-1000
-55° C -37 -18 1 19 38 56 75 93 112 130
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Temperature Conditioned TNC Male Right Angle to N Male Right Angle Low Loss Cable Using
PE-P300LL Coax PE3M0246 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3M0246 REV 1.2 5
