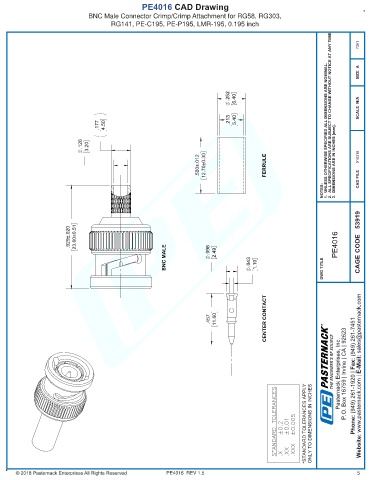

PE4016 CAD Drawing
BNC Male Connector Crimp/Crimp Attachment for RG58, RG303,
RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

7361

SIZE A

.252 6.40

SCALE N/A
.213 5.40 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
.177 4.50
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
.126 3.20

.500±.012 12.70±0.30 FERRULE 3. DIMENSIONS ARE IN INCHES [mm]. 010318

CAD FILE
NOTES:

.929±.020 23.60±0.51 PE4016 CAGE CODE 53919

BNC MALE .043 1.10 DWG TITLE
.098 2.49

CENTER CONTACT

.457 11.60 R
Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4016 REV 1.5 5
