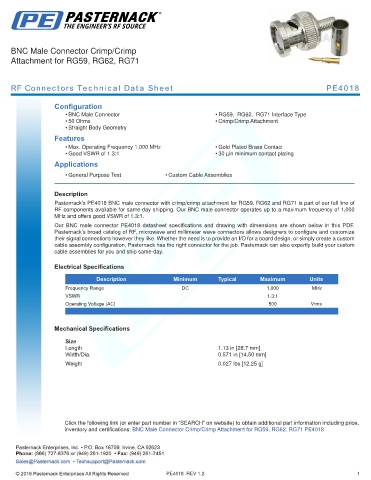

BNC Male Connector Crimp/Crimp
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4018

Configuration
• BNC Male Connector • RG59, RG62, RG71 Interface Type
• 50 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4018 BNC male connector with crimp/crimp attachment for RG59, RG62 and RG71 is part of our full line of
RF components available for same-day shipping. Our BNC male connector operates up to a maximum frequency of 1,000
MHz and offers good VSWR of 1.3:1.
Our BNC male connector PE4018 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.13 in [28.7 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.027 lbs [12.25 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Crimp Attachment for RG59, RG62, RG71 PE4018

PE4018 REV 1.2 1
