BNC Male Connector Crimp/Crimp Attachment for
.100 inch, RG316, RG174, RG188, LMR-100, LMR-
100, LMR-100-FR, PE-C100, PE-B100

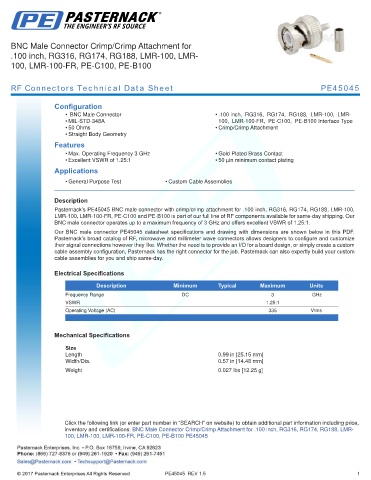

RF Connectors Technical Data Sheet PE45045

Configuration
• BNC Male Connector • .100 inch, RG316, RG174, RG188, LMR-100, LMR-
• MIL-STD-348A 100, LMR-100-FR, PE-C100, PE-B100 Interface Type
• 50 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass Contact
• Excellent VSWR of 1.25:1 • 50 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45045 BNC male connector with crimp/crimp attachment for .100 inch, RG316, RG174, RG188, LMR-100,
LMR-100, LMR-100-FR, PE-C100 and PE-B100 is part of our full line of RF components available for same-day shipping. Our
BNC male connector operates up to a maximum frequency of 3 GHz and offers excellent VSWR of 1.25:1.
Our BNC male connector PE45045 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.25:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 0.99 in [25.15 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.027 lbs [12.25 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Crimp Attachment for .100 inch, RG316, RG174, RG188, LMR-
100, LMR-100, LMR-100-FR, PE-C100, PE-B100 PE45045

PE45045 REV 1.5 1
