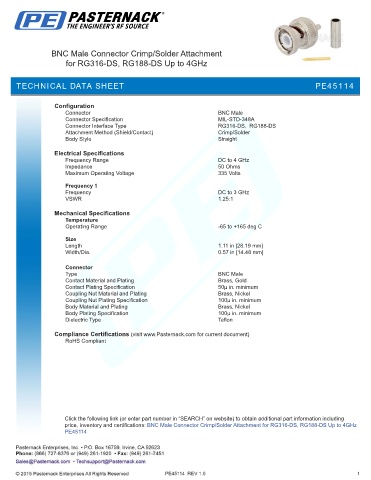

BNC Male Connector Crimp/Solder Attachment
for RG316-DS, RG188-DS Up to 4GHz

TECHNICAL DATA SHEET PE45114

Configuration
Connector BNC Male
Connector Specification MIL-STD-348A
Connector Interface Type RG316-DS, RG188-DS
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Frequency Range DC to 4 GHz
Impedance 50 Ohms
Maximum Operating Voltage 335 Volts

Frequency 1
Frequency DC to 3 GHz
VSWR 1.25:1

Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C
Size
Length 1.11 in [28.19 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Connector
Type BNC Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 50µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Male Connector Crimp/Solder Attachment for RG316-DS, RG188-DS Up to 4GHz
PE45114
