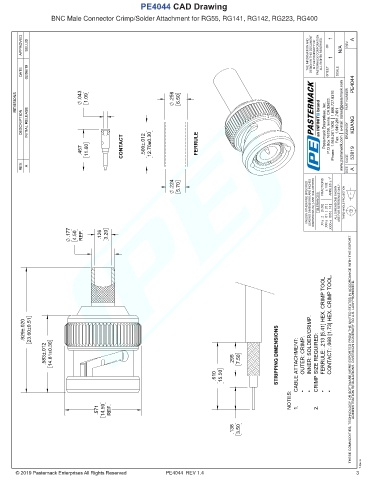

PE4044 CAD Drawing
BNC Male Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223, RG400

APPROVED SELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 02/06/19 SHEET OF SCALE PE4044

REVISIONS .043 1.09 .256 6.50 PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY KDANG

.500±.012 12.70±0.30 FERRULE
.457 11.60 CONTACT CAGE 53919

REV. A SIZE A

.224 5.70 FRACTIONS ± 1/32 ANGLES ± 1°
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .01 [ .25 ] .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.X=± .XX=± .XXX=±
.177 4.50 REF. .126 3.20

.929±.020 23.60±0.51 FERRULE: .213 [5.41] HEX. CRIMP TOOL CONTACT: .068 [1.73] HEX. CRIMP TOOL.

.583±.012 14.81±0.30 .295 7.50 STRIPPING DIMENSIONS OUTER: CRIMP.
INNER: SOLDER/CRIMP. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

CABLE ATTACHMENT: CRIMP SIZE REQUIRED:
.610 15.50
• • • •
NOTES:

.571 14.50 REF. 1. 2.

.138 3.50 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.A
PE4044 REV 1.4 3
