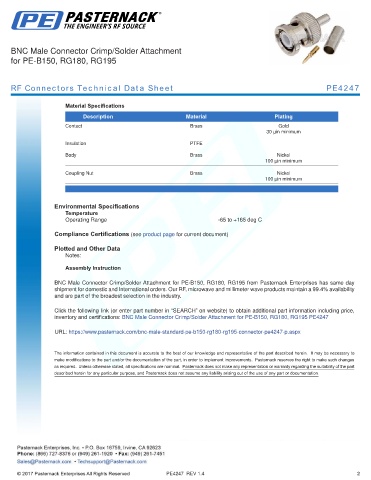

BNC Male Connector Crimp/Solder Attachment
for PE-B150, RG180, RG195

RF Connectors Technical Data Sheet PE4247

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Assembly Instruction

BNC Male Connector Crimp/Solder Attachment for PE-B150, RG180, RG195 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Solder Attachment for PE-B150, RG180, RG195 PE4247

URL: https://www.pasternack.com/bnc-male-standard-pe-b150-rg180-rg195-connector-pe4247-p.aspx

PE4247 REV 1.4 2
