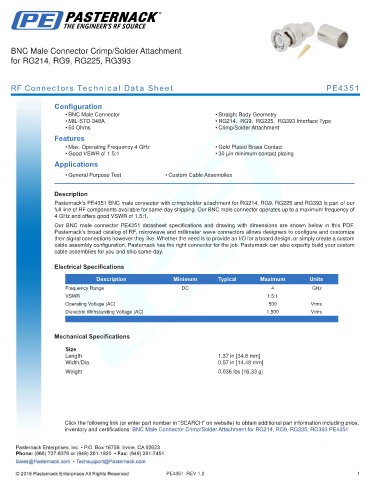

BNC Male Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393

RF Connectors Technical Data Sheet PE4351

Configuration
• BNC Male Connector • Straight Body Geometry
• MIL-STD-348A • RG214, RG9, RG225, RG393 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4351 BNC male connector with crimp/solder attachment for RG214, RG9, RG225 and RG393 is part of our
full line of RF components available for same-day shipping. Our BNC male connector operates up to a maximum frequency of
4 GHz and offers good VSWR of 1.5:1.
Our BNC male connector PE4351 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.37 in [34.8 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.036 lbs [16.33 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 PE4351
