Page 1046 - 1.0/2.3 to SHV RF Connector Datasheets
P. 1046

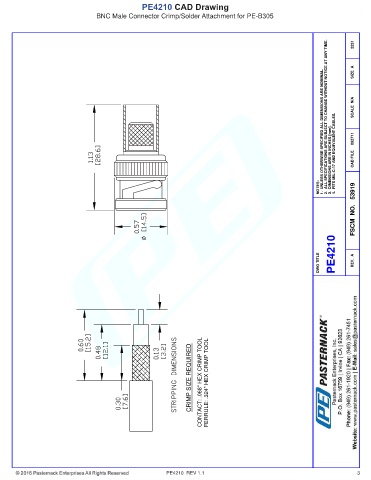

PE4210 CAD Drawing
BNC Male Connector Crimp/Solder Attachment for PE-B305
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2231
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 092711 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4210 REV. A
CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .324" HEX CRIMP TOOL
PE4210 REV 1.1 3
