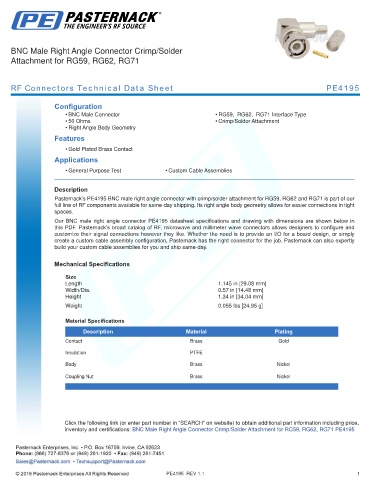

BNC Male Right Angle Connector Crimp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4195

Configuration
• BNC Male Connector • RG59, RG62, RG71 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4195 BNC male right angle connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping. Its right angle body geometry allows for easier connections in tight
spaces.
Our BNC male right angle connector PE4195 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.145 in [29.08 mm]
Width/Dia. 0.57 in [14.48 mm]
Height 1.34 in [34.04 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications

Description Material Plating
Contact Brass Gold
Insulation PTFE
Body Brass Nickel

Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Right Angle Connector Crimp/Solder Attachment for RG59, RG62, RG71 PE4195

PE4195 REV 1.1 1
