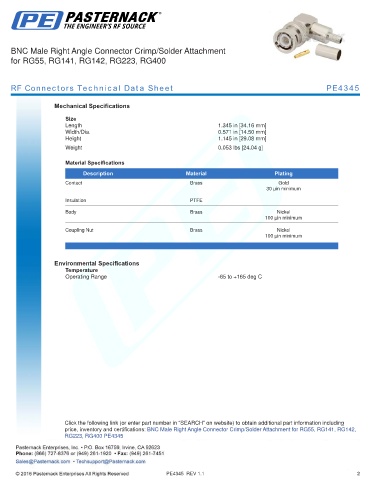

BNC Male Right Angle Connector Crimp/Solder Attachment
for RG55, RG141, RG142, RG223, RG400

RF Connectors Technical Data Sheet PE4345

Mechanical Specifications

Size
Length 1.345 in [34.16 mm]
Width/Dia. 0.571 in [14.50 mm]
Height 1.145 in [29.08 mm]
.
Weight 0.053 lbs [24.04 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Male Right Angle Connector Crimp/Solder Attachment for RG55, RG141, RG142,
RG223, RG400 PE4345
