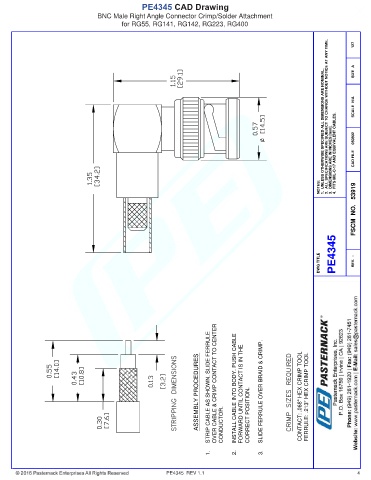

PE4345 CAD Drawing
BNC Male Right Angle Connector Crimp/Solder Attachment
for RG55, RG141, RG142, RG223, RG400

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 050802 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4345 REV. -

ASSEMBLY PROCEDURES STRIP CABLE AS SHOWN. SLIDE FERRULE OVER CABLE & CRIMP CONTACT TO CENTER INSTALL CABLE INTO BODY. PUSH CABLE FORWARD UNTIL CONTACT IS IN THE CORRECT POSITION. SLIDE FERRULE OVER BRAID & CRIMP. CONTACT: .068" HEX CRIMP TOOL FERRULE: .213" HEX CRIMP TOOL

1. CONDUCTOR. 2. 3.

PE4345 REV 1.1 4
