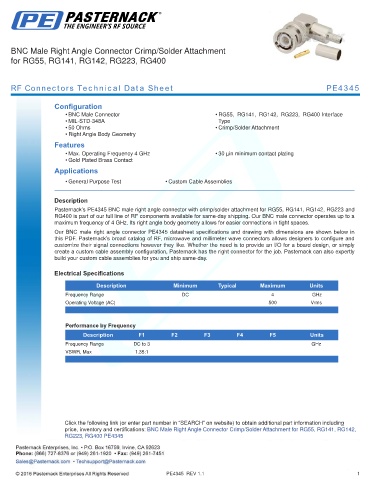

BNC Male Right Angle Connector Crimp/Solder Attachment
for RG55, RG141, RG142, RG223, RG400

RF Connectors Technical Data Sheet PE4345

Configuration
• BNC Male Connector • RG55, RG141, RG142, RG223, RG400 Interface
• MIL-STD-348A Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 4 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4345 BNC male right angle connector with crimp/solder attachment for RG55, RG141, RG142, RG223 and
RG400 is part of our full line of RF components available for same-day shipping. Our BNC male connector operates up to a
maximum frequency of 4 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our BNC male right angle connector PE4345 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 GHz
VSWR, Max 1.35:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Male Right Angle Connector Crimp/Solder Attachment for RG55, RG141, RG142,
RG223, RG400 PE4345

PE4345 REV 1.1 1
