BNC Male Right Angle Connector Crimp/Solder
Attachment For PE-C200, LMR-200

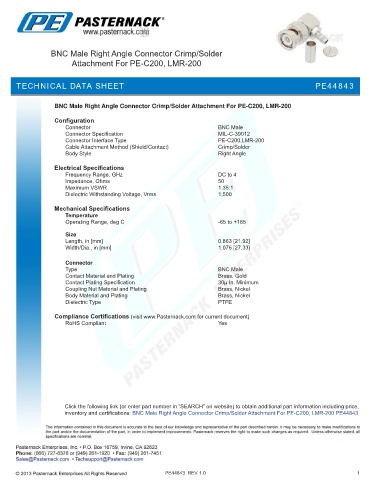

TECHNICAL DATA SHEET PE44843

BNC Male Right Angle Connector Crimp/Solder Attachment For PE-C200, LMR-200

Configuration
Connector BNC Male
Connector Specification MIL-C-39012
Connector Interface Type PE-C200,LMR-200
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Right Angle

Electrical Specifications
Frequency Range, GHz DC to 4
Impedance, Ohms 50
Maximum VSWR 1.35:1
Dielectric Withstanding Voltage, Vrms 1,500

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.863 [21.92]
Width/Dia., in [mm] 1.076 [27.33]
.
Connector
Type BNC Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ In. Minimum
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Right Angle Connector Crimp/Solder Attachment For PE-C200, LMR-200 PE44843

PE44843 REV 1.0 1
