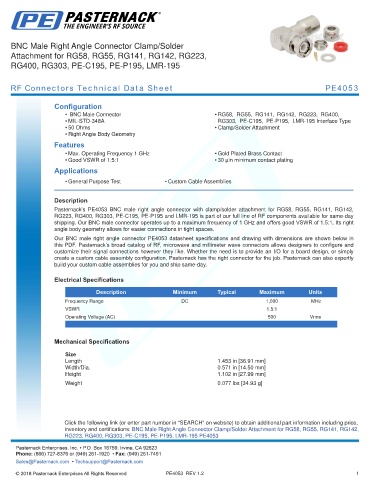

BNC Male Right Angle Connector Clamp/Solder
Attachment for RG58, RG55, RG141, RG142, RG223,
RG400, RG303, PE-C195, PE-P195, LMR-195

RF Connectors Technical Data Sheet PE4053

Configuration
• BNC Male Connector • RG58, RG55, RG141, RG142, RG223, RG400,
• MIL-STD-348A RG303, PE-C195, PE-P195, LMR-195 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 1 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4053 BNC male right angle connector with clamp/solder attachment for RG58, RG55, RG141, RG142,
RG223, RG400, RG303, PE-C195, PE-P195 and LMR-195 is part of our full line of RF components available for same-day
shipping. Our BNC male connector operates up to a maximum frequency of 1 GHz and offers good VSWR of 1.5:1. Its right
angle body geometry allows for easier connections in tight spaces.
Our BNC male right angle connector PE4053 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.453 in [36.91 mm]
Width/Dia. 0.571 in [14.50 mm]
Height 1.102 in [27.99 mm]
.
Weight 0.077 lbs [34.93 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Right Angle Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142,
-
RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 PE4053 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4053 REV 1.2 1
