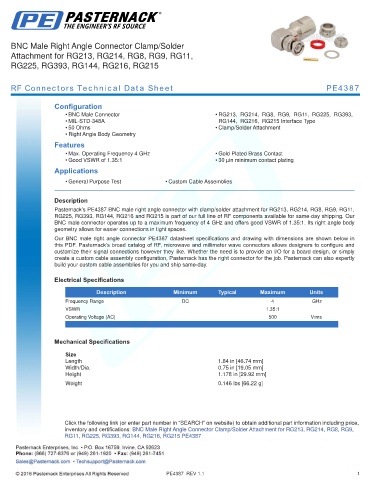

Page 1162 - 1.0/2.3 to SHV RF Connector Datasheets

BNC Male Right Angle Connector Clamp/Solder
Attachment for RG213, RG214, RG8, RG9, RG11,
RG225, RG393, RG144, RG216, RG215

RF Connectors Technical Data Sheet PE4387

Configuration
• BNC Male Connector • RG213, RG214, RG8, RG9, RG11, RG225, RG393,
• MIL-STD-348A RG144, RG216, RG215 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4387 BNC male right angle connector with clamp/solder attachment for RG213, RG214, RG8, RG9, RG11,
RG225, RG393, RG144, RG216 and RG215 is part of our full line of RF components available for same-day shipping. Our
BNC male connector operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.35:1. Its right angle body
geometry allows for easier connections in tight spaces.
Our BNC male right angle connector PE4387 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.35:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications
Size
Length 1.84 in [46.74 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 1.178 in [29.92 mm]
.
Weight 0.146 lbs [66.22 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Right Angle Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9,
RG11, RG225, RG393, RG144, RG216, RG215 PE4387
