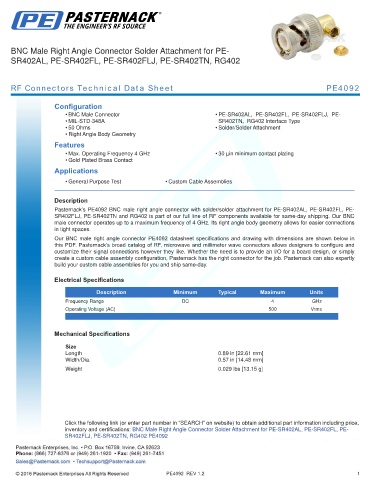

BNC Male Right Angle Connector Solder Attachment for PE-
SR402AL, PE-SR402FL, PE-SR402FLJ, PE-SR402TN, RG402

RF Connectors Technical Data Sheet PE4092

Configuration
• BNC Male Connector • PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
• MIL-STD-348A SR402TN, RG402 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 4 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4092 BNC male right angle connector with solder/solder attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN and RG402 is part of our full line of RF components available for same-day shipping. Our BNC
male connector operates up to a maximum frequency of 4 GHz. Its right angle body geometry allows for easier connections
in tight spaces.
Our BNC male right angle connector PE4092 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 0.89 in [22.61 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.029 lbs [13.15 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male Right Angle Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN, RG402 PE4092

PE4092 REV 1.2 1
