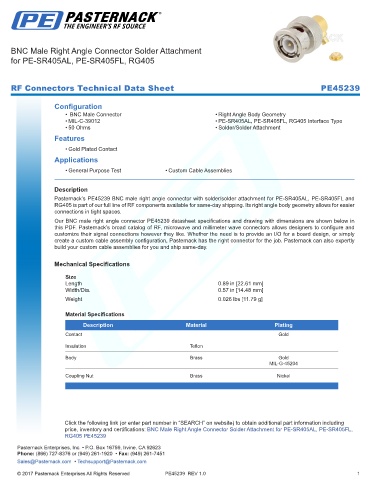

BNC Male Right Angle Connector Solder Attachment
for PE-SR405AL, PE-SR405FL, RG405

RF Connectors Technical Data Sheet PE45239

Configuration
• BNC Male Connector • Right Angle Body Geometry
• MIL-C-39012 • PE-SR405AL, PE-SR405FL, RG405 Interface Type
• 50 Ohms • Solder/Solder Attachment
Features
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45239 BNC male right angle connector with solder/solder attachment for PE-SR405AL, PE-SR405FL and
RG405 is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier
connections in tight spaces.
Our BNC male right angle connector PE45239 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.89 in [22.61 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.026 lbs [11.79 g]
.
Material Specifications
Description Material Plating
Contact Gold

Insulation Teflon
Body Brass Gold
MIL-G-45204

Coupling Nut Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Male Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL,
RG405 PE45239

PE45239 REV 1.0 1
