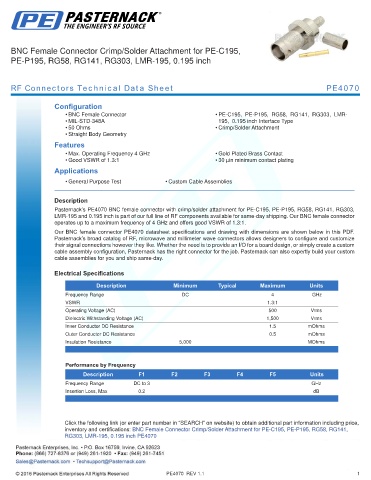

BNC Female Connector Crimp/Solder Attachment for PE-C195,
PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE4070

Configuration
• BNC Female Connector • PE-C195, PE-P195, RG58, RG141, RG303, LMR-
• MIL-STD-348A 195, 0.195 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4070 BNC female connector with crimp/solder attachment for PE-C195, PE-P195, RG58, RG141, RG303,
LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. Our BNC female connector
operates up to a maximum frequency of 4 GHz and offers good VSWR of 1.3:1.
Our BNC female connector PE4070 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 0.5 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 GHz
Insertion Loss, Max 0.2 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58, RG141,
RG303, LMR-195, 0.195 inch PE4070

PE4070 REV 1.1 1
