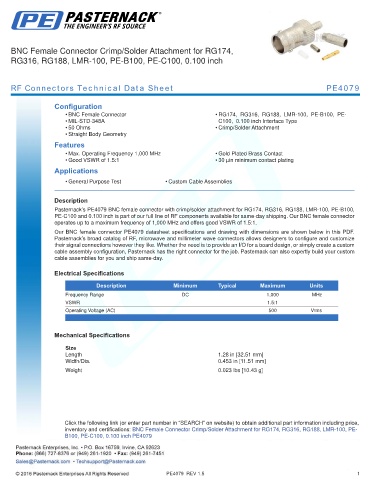

BNC Female Connector Crimp/Solder Attachment for RG174,
RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

RF Connectors Technical Data Sheet PE4079

Configuration
• BNC Female Connector • RG174, RG316, RG188, LMR-100, PE-B100, PE-
• MIL-STD-348A C100, 0.100 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4079 BNC female connector with crimp/solder attachment for RG174, RG316, RG188, LMR-100, PE-B100,
PE-C100 and 0.100 inch is part of our full line of RF components available for same-day shipping. Our BNC female connector
operates up to a maximum frequency of 1,000 MHz and offers good VSWR of 1.5:1.
Our BNC female connector PE4079 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.28 in [32.51 mm]
Width/Dia. 0.453 in [11.51 mm]
.
Weight 0.023 lbs [10.43 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-
B100, PE-C100, 0.100 inch PE4079
