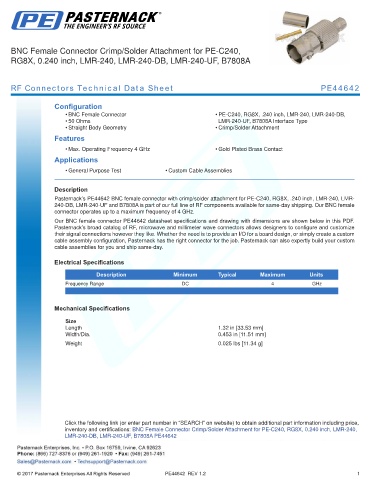

BNC Female Connector Crimp/Solder Attachment for PE-C240,
RG8X, 0.240 inch, LMR-240, LMR-240-DB, LMR-240-UF, B7808A

RF Connectors Technical Data Sheet PE44642

Configuration
• BNC Female Connector • PE-C240, RG8X, .240 inch, LMR-240, LMR-240-DB,
• 50 Ohms LMR-240-UF, B7808A Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 4 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44642 BNC female connector with crimp/solder attachment for PE-C240, RG8X, .240 inch, LMR-240, LMR-
240-DB, LMR-240-UF and B7808A is part of our full line of RF components available for same-day shipping. Our BNC female
connector operates up to a maximum frequency of 4 GHz.
Our BNC female connector PE44642 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
.

Mechanical Specifications

Size
Length 1.32 in [33.53 mm]
Width/Dia. 0.453 in [11.51 mm]
.
Weight 0.025 lbs [11.34 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Crimp/Solder Attachment for PE-C240, RG8X, 0.240 inch, LMR-240,
LMR-240-DB, LMR-240-UF, B7808A PE44642

PE44642 REV 1.2 1
