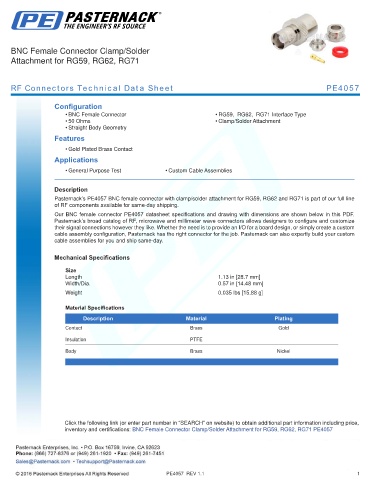

BNC Female Connector Clamp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4057

Configuration
• BNC Female Connector • RG59, RG62, RG71 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4057 BNC female connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our full line
of RF components available for same-day shipping.
Our BNC female connector PE4057 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.13 in [28.7 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.035 lbs [15.88 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4057

PE4057 REV 1.1 1
