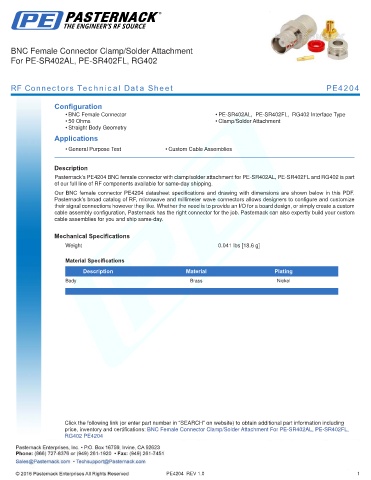

BNC Female Connector Clamp/Solder Attachment
For PE-SR402AL, PE-SR402FL, RG402

RF Connectors Technical Data Sheet PE4204

Configuration
• BNC Female Connector • PE-SR402AL, PE-SR402FL, RG402 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4204 BNC female connector with clamp/solder attachment for PE-SR402AL, PE-SR402FL and RG402 is part
of our full line of RF components available for same-day shipping.
Our BNC female connector PE4204 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: BNC Female Connector Clamp/Solder Attachment For PE-SR402AL, PE-SR402FL,
RG402 PE4204

PE4204 REV 1.0 1
